Description

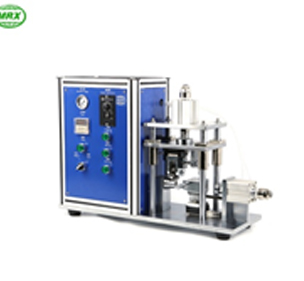

Cylinder cell lab equipment ( GROOVER ) :
Semi-auto grooving machine. It is used for grooving various
cylindrical cases including CR123,18650 26650, 32650 and AA.
Features :
1. Grooving width is adjustable.
2. Grooving depth is adjustable.
3. Grooving time can be set.
4. Stepless-speed is used for grooving speed.
5. Use Manual or automatic grooving mode.
6. Different types of cylindrical battery shell can be grooved.
7. Hobbing cutter is precision machined to ensure the accuracy and reliability of grooving formation and the stability of use.
8. The operation is convenient and can be handled inside the glove box.
Application :
- Battery lab
- Battery research
- Lithium ion battery lab
- Material research
- Trial-production
| CYLINDER CELL LAB EQUIPMENT | |
| Item Name | Cylinder Battery Grooving Machine |
| Model | MRX-GC650 |
| Grooving depth | 0~10mm(adjustable) |
| Grooving cutter position | 0~20mm(adjustable) |
| Grooving speed | 0~300r/S(adjustable) |
| Grooving width | 1.1-1.6mm(depends on the thickness of grooving cutter) |
| Weight | 40kg |
| Manufacturing accuracy | ±0.1mm |
| Capacity | 6~8 case/min(demands on familiarity) |
| Power supply | 220v/50HZ 140W |
| Compressed air | 0.45~0.6MPa |
| Component material | High-strengthen chrome steel, and never rusts for the surface is treated through environmental electroplating and painting |
