Description

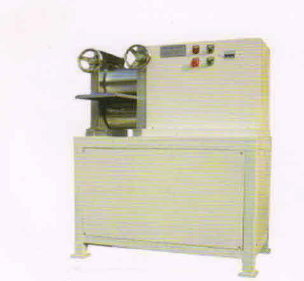

It mainly consists of 2 heating roller, motor gear driving system frame.
Technical parameters:
1.Rated voltage\power:220v\2.6kw.
2.Pressure roller size: φ150mm×300mm.
3.The roll surface hardness: HRC62.
4.Cylindrical roller degree: ≤±0.005mm.
5.Effective gap: 0-1.5 mm (adjustable).
6.working speed: stepless speed, line speed 0-1.5 m\min (adjustable).
7.The working width: 0- 3oomm.
8.the roll surface quenching depth: 5mm.
9.Net weight: approx 320kg.
10.Overall size: approx 1050 (L)500 (W)×1060(H)mm.
